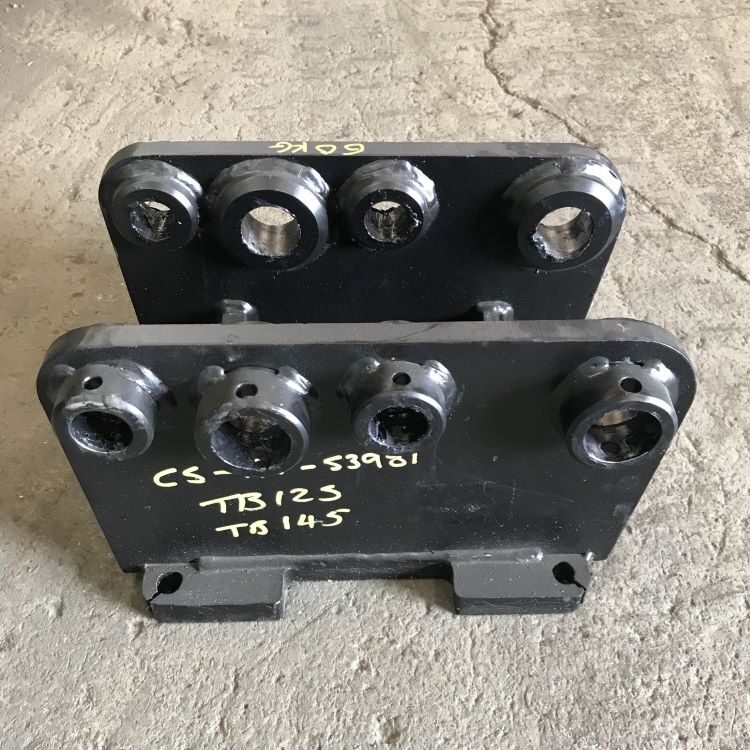

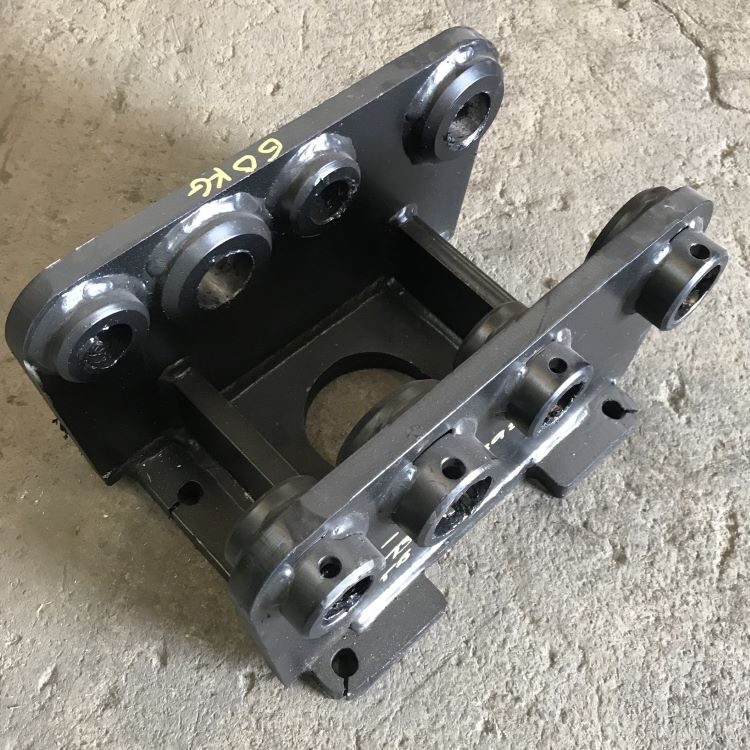

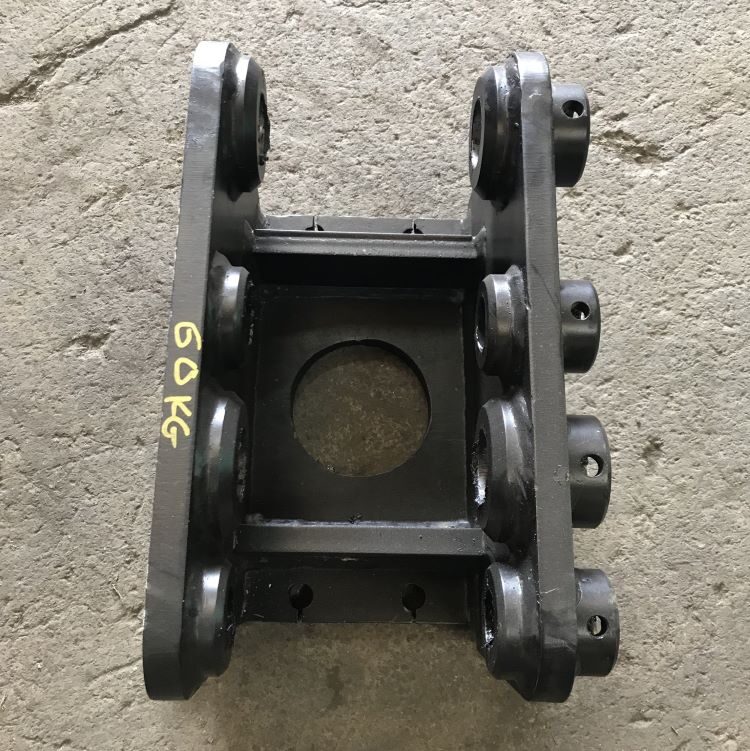

Head Bracket / Hammer Top – SB202 Breaker to Dual TB125 & TB145

Name: Head Bracket / Hammer Top - SB202 Breaker to Dual TB125 &amp; TB145
SKU: CS-HT-53981
Availability: InStock

£350.00

Orders shipped outside the UK may be subject to customs charges, which are not included in the price.

Need agricultural attachments or brackets? CLICK HERE for our agricultural products

Availability: In stock

Guaranteed Safe Checkout

SPECIAL OFFER – Head Bracket / Hammer Top for SB202

Head bracket for an SB202 hydraulic breaker on 2.5 & 4.5 TonTakeuchi Excavators

A dual machine pick up for Takeuchi TB125 and TB145 machines – bracket set at 152mm gap for both pick ups

TB125 Hanger details: 35mm pin / (124mm gap) / 180mm pin centres
- Suitable for CASE C28, C31, Kobelco SK024, SK025, SK0027, Takeuchi TB025, TB28FR
TB145 Hanger details: 45mm pin / 152mm gap / 233mm pin centres
- Suitable for Kobelco SK045, SK050

Manufactured by ourselves, unused.

Dummy pins can be supplied at additional cost if required.

Priced to clear.

If further information is required – Please give us a call !
