Features
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton/Digga geroler hydraulic motor
- No case drain required
- Full range of shafts available upon request
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth

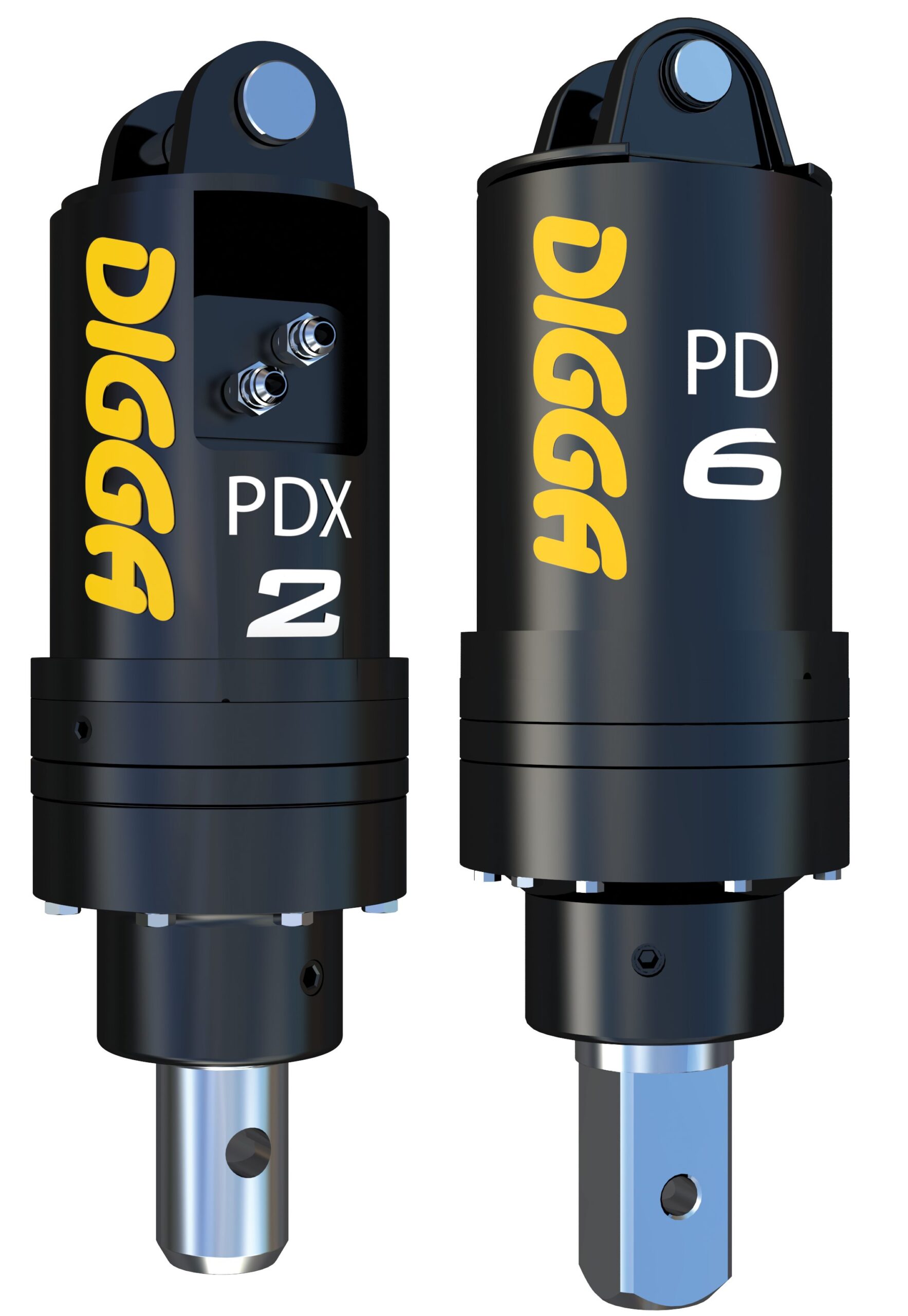

Digga’s PDX2 to PD6 range of Earth Drills, also called Auger Drives, are ideally suited for mini excavators with a flow between 30 and 115 lpm and weight from 2T to 5T. Completely manufactured and assembled by Digga, using only the highest-grade materials and strictest quality control.
The innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary earth drills are fitted with Digga / Eaton bell motors specially designed for earth drilling in most ground conditions.
| PDX2 | PDX3 | PD3 | PD4 | PD5 | PD6 | |
| Rec Flow Range | 30-50 lpm | 30-55 lpm | 45-75 lpm | 55-85 lpm | 60-95 lpm | 70-115 lpm |
| Max Torque | 2307 Nm | 2831 Nm | 3544 Nm | 4448 Nm | 5151 Nm | 5596 Nm |
| Pressure Valve Fitted | Optional | Optional | Optional | Optional | Optional | Optional |
| Max Pressure | 240 bar @ 60 lpm | 240 bar @ 60 lpm | ||||
| Do Not Exceed | ||||||
| Max Flow | 115 lpm @ 130 bar | 115 lpm @ 130 bar | ||||
| Do Not Exceed | ||||||
| Max Power | 25 Kw (34 hp) | 25 Kw (34 hp) | ||||
| Do Not Exceed | ||||||
| Overall Length | 557 mm | 579 mm | 579 mm | 579 mm | 579 mm | 730 mm |
| Diameter | 187 mm | 187 mm | 240 mm | 240 mm | 240 mm | 240 mm |
| Weight | 45 Kg | 45 Kg | 57 kg | 58 kg | 67 kg | 89 kg |
| No Frame / Hitch | ||||||
| Std Output Shaft | 65 mm Round | 65 mm Round | 65 mm Round | 75 mm square | 75 mm square | 75 mm square |
| Swing Control | n / a | n / a | Optional | Optional | Optional | Optional |
| Diggalign | n / a | n / a | Optional | Optional | Optional | Optional |
| Rec Auger | A4 / RC4 | A4 / RC4 | A4 / RC4 | A4 / RC4 | A6 / RC6 | A6 / RC6 |
| Max Auger Dia Clay/Shale* | 450 mm | 450 mm | 600 mm | 750 mm | 900 mm | 900 mm |
| Max Auger Dia Earth* | 600 mm | 600 mm | 750 mm | 900 mm | 1000 mm | 1000 mm |
| Halo Available | Yes | Yes | Yes | |||
